Portable AC (Electric) Water Maker

SKU: Portable-AC-140L
Sale price$5,092.00

The AC system is by far our most popular watermaker. It’s a very simple and highly reliable system that can make up to 140 litres (37 gallons) of fresh potable water per hour.

Options exist for this system to be run as portable without any plumbing or plumbed in with a minimum footprint installation.

Our AC system is a great option when you want to make a lot of water quickly and get back to enjoying yourself.

Features common to both Portable and Modular versions

  • 1.5 HP totally enclosed fan cooled (TEFC) induction motor
  • 1250 watts steady state power consumption
  • Current draw 6 amps (230VAC) or 12 amps (115VAC)
  • Power cord length: 3 metres (10 ft)
  • Plug type choices: US (NEMA 5-15), Australian (AS/NZS 3112), UK (BS 1363), Europe (CEE 7/7)
  • Integrated flexible impeller lift pump uses non-proprietary impeller
  • 2 metre (6 ft) maximum lift above sea level
  • General Pump WMR 316 stainless steel high pressure triplex plunger pump
  • Integrated General Pump 316SS/ceramic relief valve to prevent overpressurisation
  • 3 metre (10 ft) LDPE food grade product water hose, with 10 metre (33 ft) extension (8mm OD)
  • Sound levels – 62dB at 6 metres (20 ft)

Two Components – One Watermaker

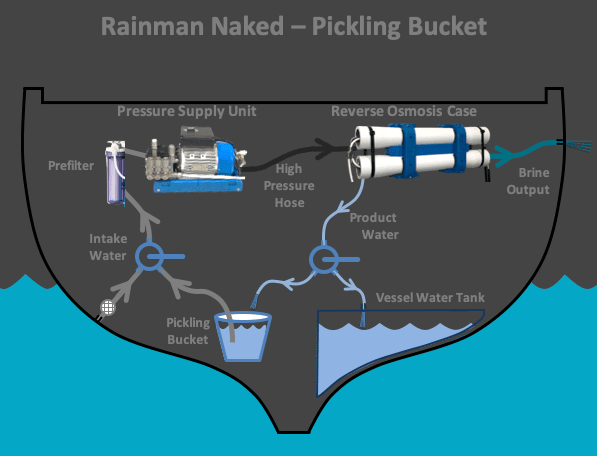

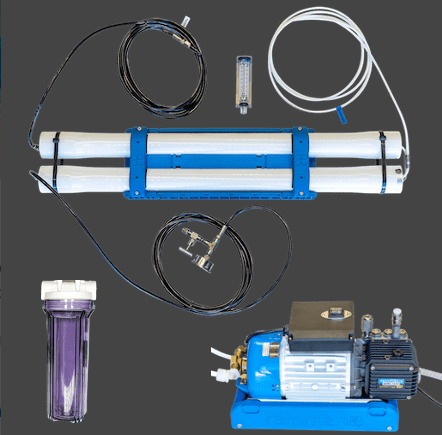

The system is made up of a pressure supply unit (PSU) and a reverse osmosis unit (RO).

Both parts are required to make a complete watermaker. The PSU lifts the seawater, filters out the sediment and puts the system under high pressure, while the RO unit extracts fresh water from the stream of pressurised seawater.

Most of the water goes out to waste as brine output, while about 20% of the volume is extracted as fresh potable water for your tanks.

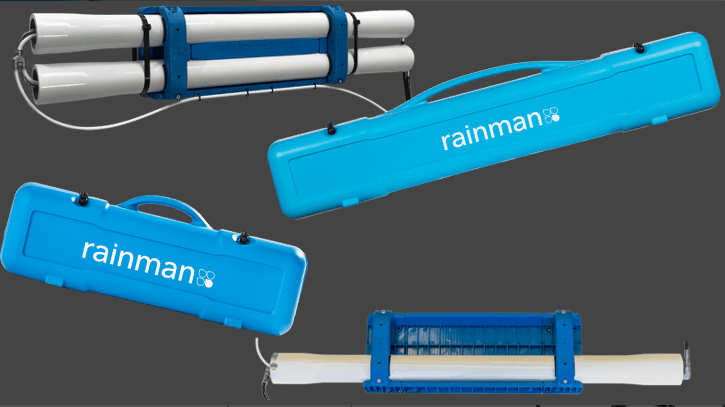

Different RO options exist for you to select with your AC Rainman system, each to achieve their own specific objective.

Power

With recent advancements in generators, batteries, and solar power generation, you have several options for powering the AC system.

Originally designed to run off of a minimum of a Honda 2kW generator, it will be easily powered by your inbuilt generator or a quality 2kVA inverter.

Choose either a 230VAC/50Hz or 115VAC/60Hz option to suit the power available in your situation.

Installed or Portable Watermaker

Our traditional system in the blue case can be used as either portable or installed. If you wish to install it, it becomes a two box installation. Various approaches that can be utilised include:

  • Keep it portable, pulling it out and setting it up each time you wish to use it.
  • Leave the unit in a locker, but pull out the hoses and throw overboard to make water, avoiding the need to move the system around on your deck.
  • Keep the system portable, but use a cam-lock fitting to temporarily plumb the system into a teed deck wash fitting. This gives the benefits of an installed system while using your portable unit while underway.
  • Fully plumb the system in, including the auto flush system.

***Our systems are shipped from Sydney, Australia.  Flat rate Shipping fee of $400 will be billed before shipping.  ***

Output:

Output

Portable AC (Electric) Water Maker
Portable AC (Electric) Water Maker Sale price$5,092.00
