Modular Electric Water Maker

Minimalist Installation

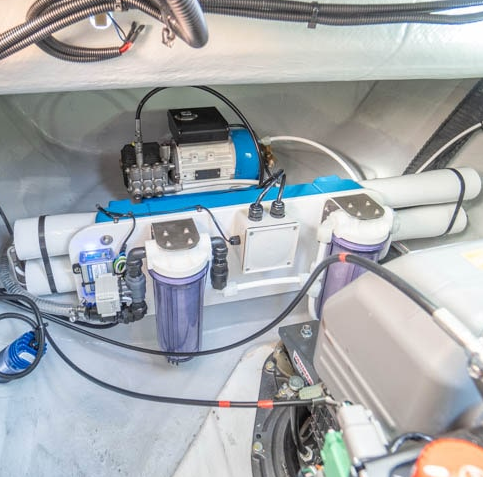

Rainman’s modular system is designed to utilise the minimum footprint for an installation. Each component can be mounted into small and remote locations of your vessel.

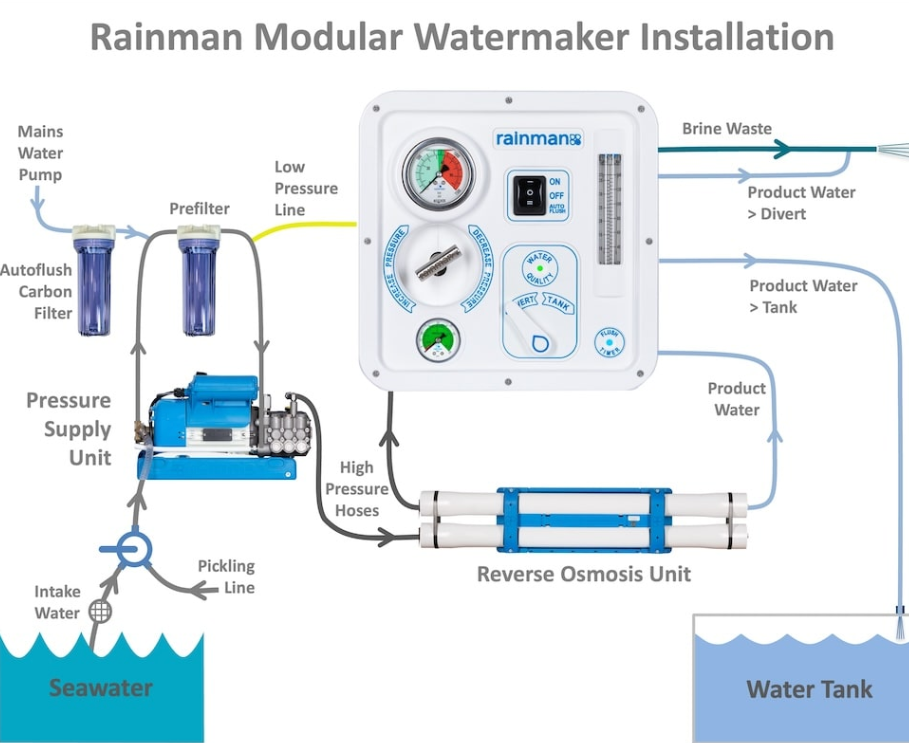

The primary system is comprised of a pressure supply unit (PSU) and a reverse osmosis unit (RO). Both parts are required to make a complete watermaker. The PSU lifts the seawater, filters out the sediment and puts the system under high pressure, while the RO unit extracts fresh water from the stream of pressurised seawater. Most of the water goes out to waste as brine output, while about 20% of the volume is extracted as fresh potable water for your tanks. Different power and RO options exist depending on your requirements.

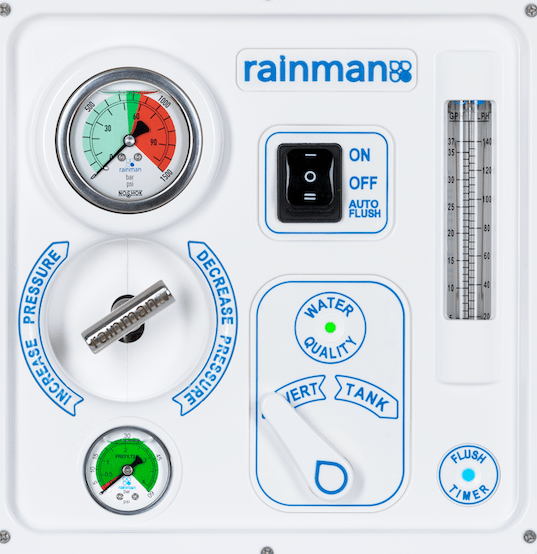

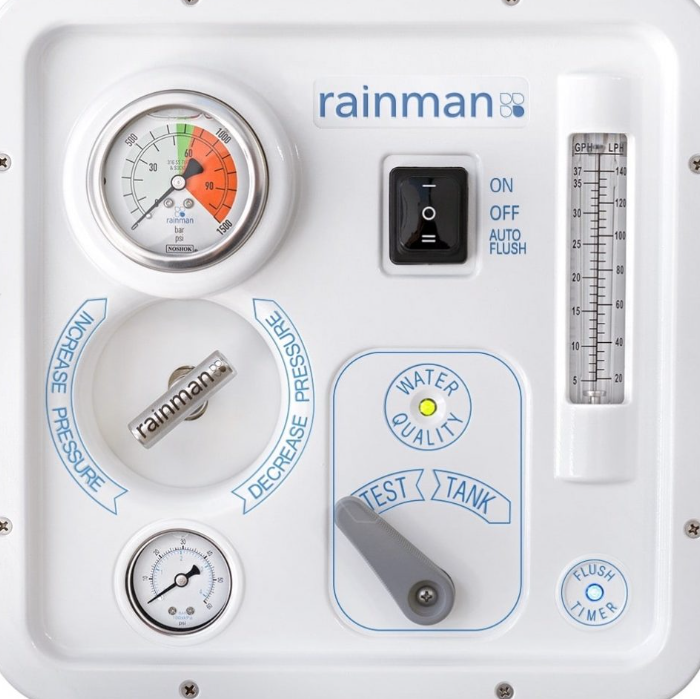

Optional components, such as manual control panel and autoflush system are available to ease and enhance the user experience.

Specifications
