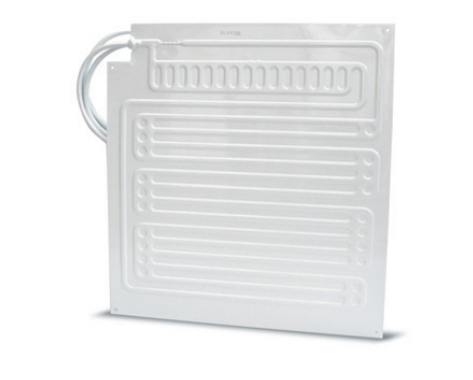

PT9-Q Flat Evaporator

Flat evaporators can be easily installed and provide a multitude of different cooling requirements, due to the ability to bend them to fit into the refrigerated compartment. When installing, always use the stand-offs and provided holes in the plate evaporator.

The charts after the technical data describe the various types of condensation, also showing a combination guide to make a cooling unit, with a specific example.
