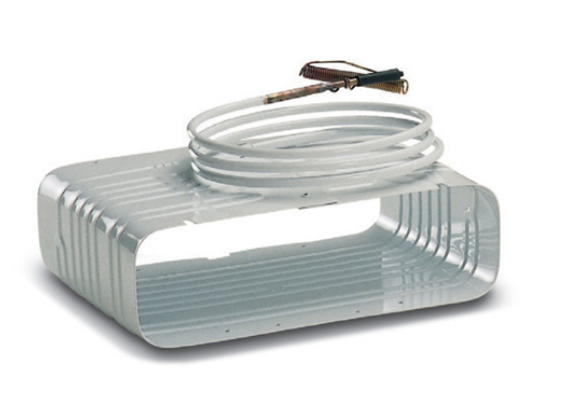

S7-Q Boxed Evaporator

Cooling systems with boxed evaporators are recommended for all installations where a freezer compartment is required, leaving the remainder of the box as refrigerator space. Boxed evaporators with bottom piece and lids can be placed horizontally or vertically according to requirements and available space.

The charts after the technical data describe the various types of condensation, also showing a combination guide to make a cooling unit, with a specific example.
